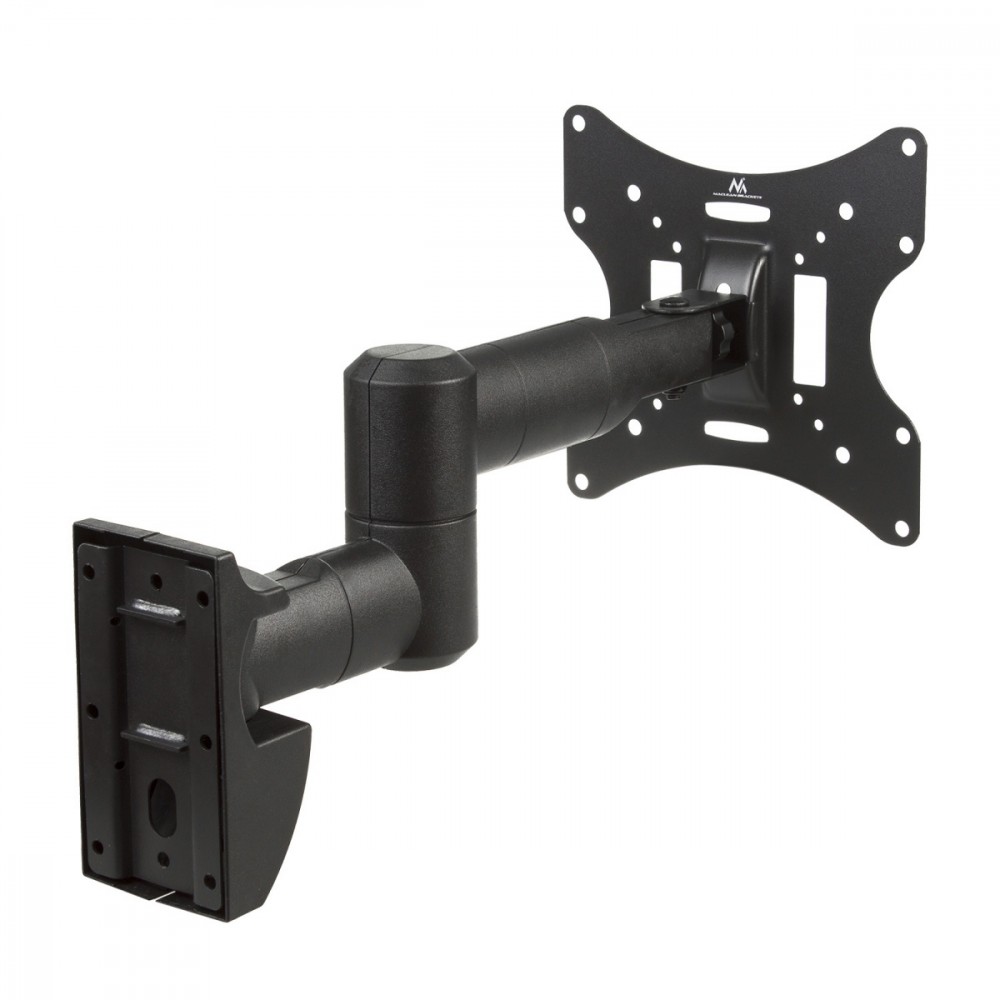

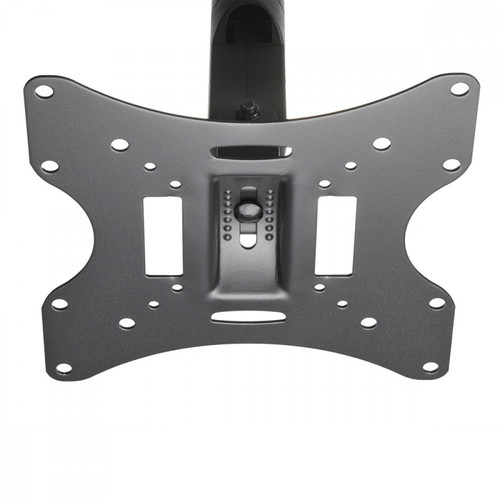

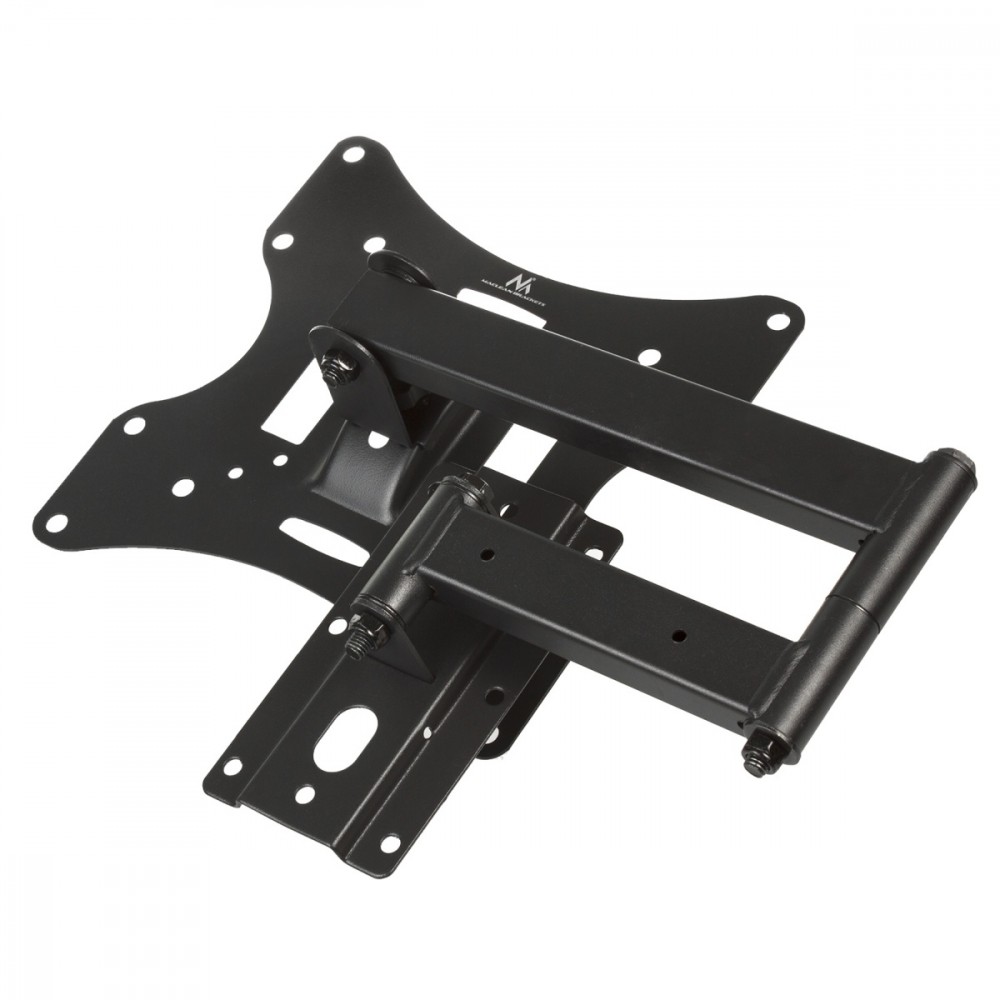

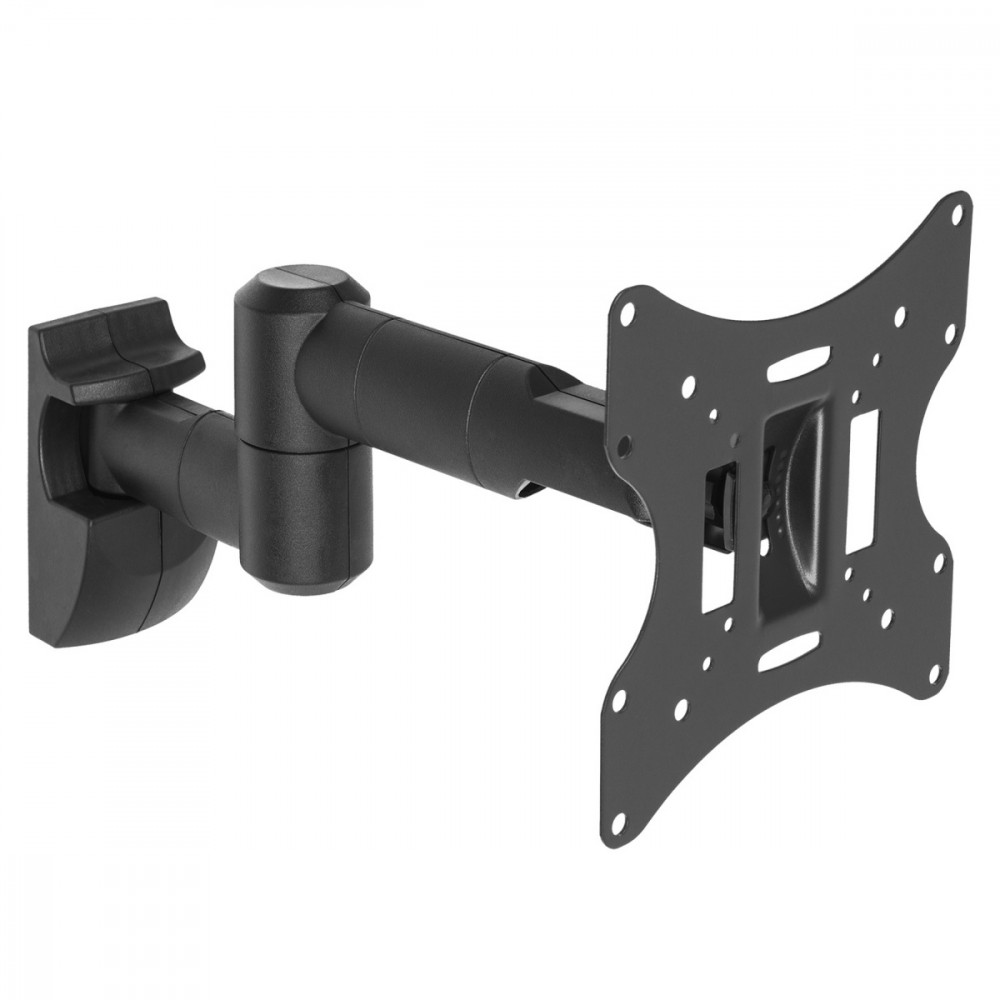

MC-503B LCD Bracket

<< Previous Next >>
MC-503B LCD Bracket
Availability: Available
Delivery: 03-12-2026
Price: €26.63 26.63
quantity pcs
add to wish list
Brand: Maclean
Product code/SKU: 98876
  • ask about product
  • recommend to a friend

Technical data

Type Wall
Colour Black

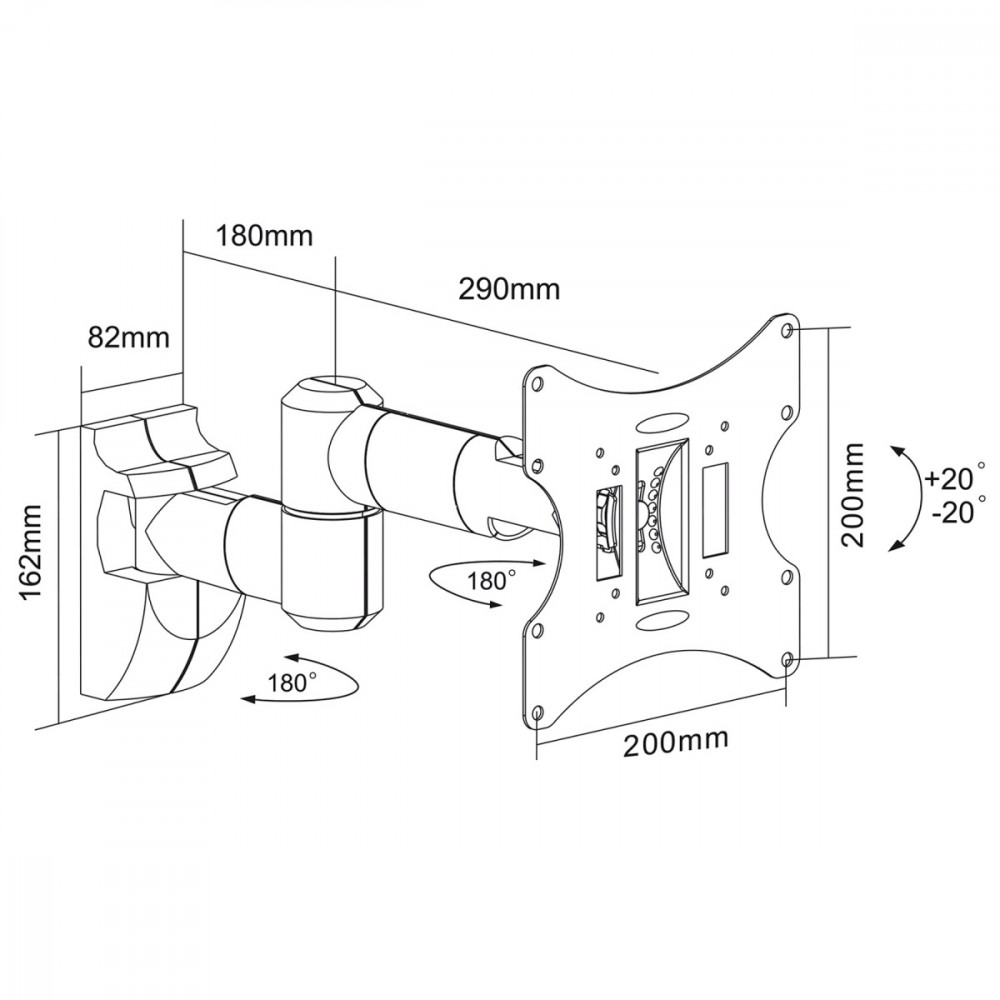

Dimensions - Bracket size: 220 x 220 mm - Arm size: 180-470mm - Wall connector size: 82 x 162 mm
Other features - Arm can be adjusted horizontally in two planes and vertically in one plane - 3 joint arm - Cable guides in the chasis
Material Metal
Load (max) 30 kilogram
Usage Monitors
VESA 200 x 100
Screen size (min) 23"
Screen size (max) 42"
Range adjustment Yes
Range (min) 180 Millimetre
Range (max) 470 Millimetre
Vertical adjustment 40 Degrees
Horizontal adjustment 360 Degrees
Corner mount Yes

Description

- Bracket size: 220 x 220 mm

- Arm size: 180-470mm

- Wall connector size: 82 x 162 mm


- Arm can be adjusted horizontally in two planes and vertically in one plane

- 3 joint arm

- Cable guides in the chasis
