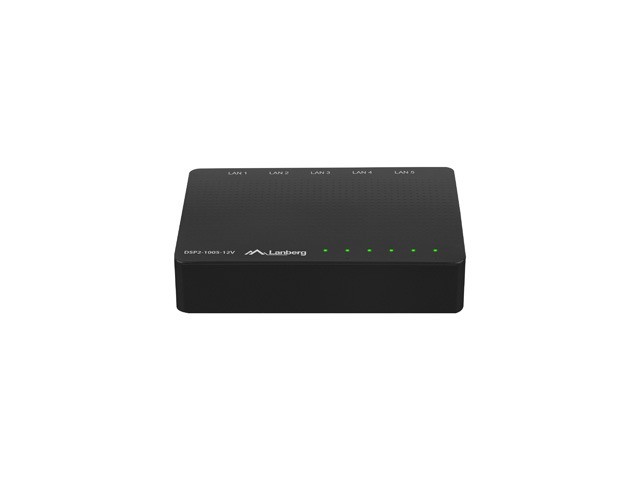

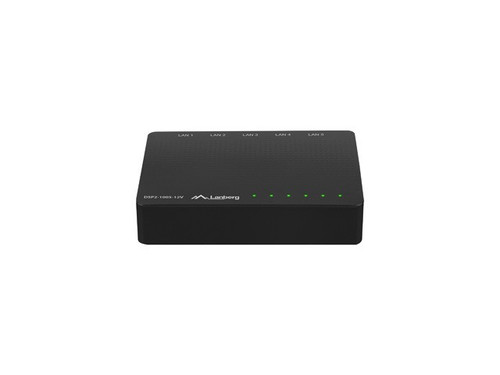

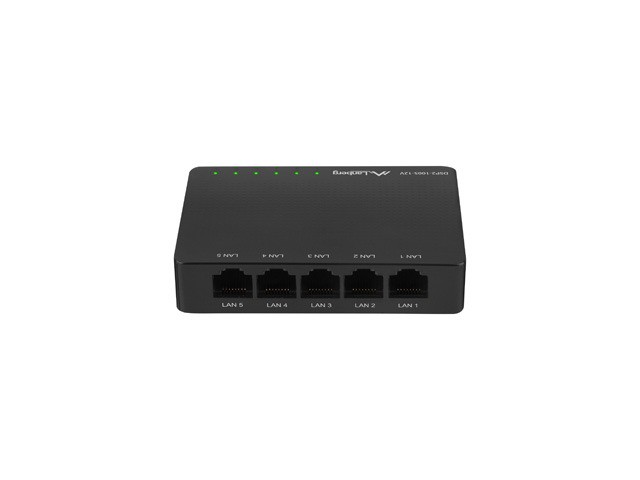

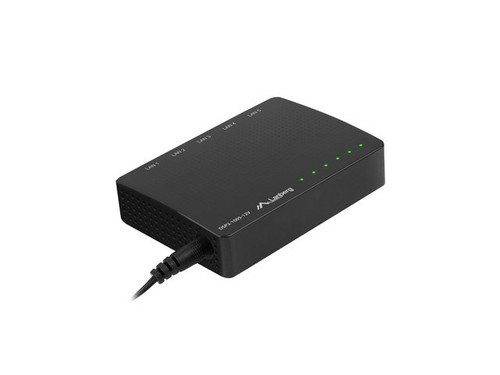

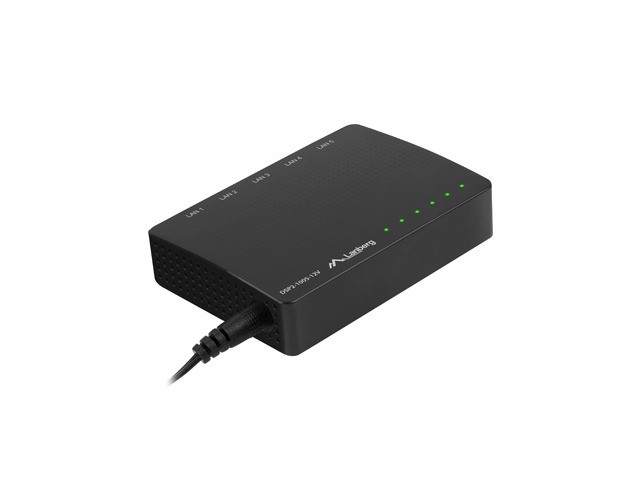

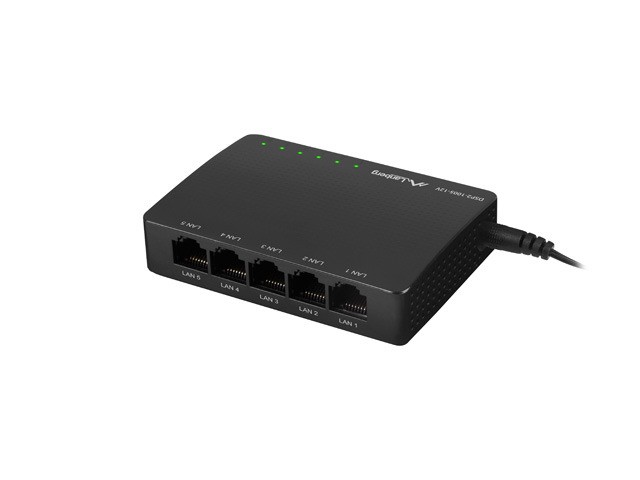

Lanberg Switch 5X 1GB/S Gigabit 12V Ethernet DSP2-1005-12
Available
add to wish list
Technical data
| Dimensions | 93 x 65.7 x 22.3 mm |
| Weight | 0.14 kilogram |
| Application | Home and small office |
| Power consumption | 2.64 Watt |
| Network architecture | GigabitEthernet |
| Fan | No |
| Power supply | Power supply: external (AC: 100 ~ 240 V, 50/60 Hz, 0.3 A; DC: 12 V, 0.5 A), |
| Chassis type | Desktop |
| Switch class | SMART |
| Number of 10/100/1000 Mbps ports | 5 |
| Throughput | 10 GB/s |
| MAC address table size | 2000 |
| Stackability | No |
| Supported protocols and standards | CSMA/CD |
| Management, monitoring, configuration | 5 x RJ-45 10/100/1000 Mbps ports with automatic connection negotiation, Plug-and-play support product does not require any additional configuration, MDI / MDIX support, MAC-learning, MAC-aging, Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex, |
Description
- 5 x RJ-45 10/100/1000 Mbps ports with automatic connection negotiation,
- Plug-and-play support – product does not require any additional configuration,
- MDI / MDIX support, MAC-learning, MAC-aging,
- Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex,
- Topology: Star,
- Protocol: CSMA / CD,
- MAC address table support: 2K,
- Switching bandwidth: 10 Gbps,
- Passive cooling for silent switch operation,
- Mounting holes for wall installation.
Interface:
- Power supply: external (AC: 100 ~ 240 V, 50/60 Hz, 0.3 A; DC: 12 V, 0.5 A),
- Power consumption: max. 2.64 W,
- LEDs indicating PSU operation: Power, LAN ports (Link / ACT),
- Dimensions: 93 x 65.7 x 22.3 mm.
