Idmar Central Heating Pump RS 25/4 EAB

<< Previous Next >>

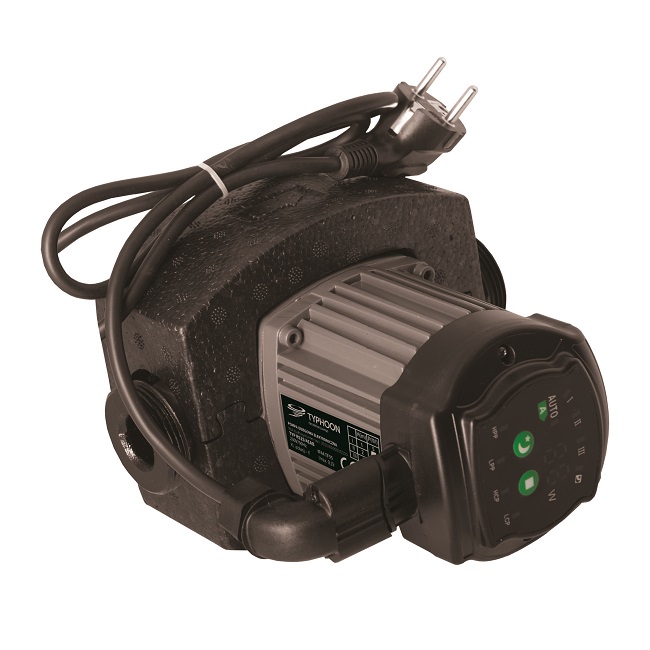

Idmar Central Heating Pump RS 25/4 EAB
Availability: Out of stock
Price: €200.93 200.93
quantity pcs
add to wish list
Brand: Idmar
Product code/SKU: 367962
  • ask about product
  • recommend to a friend

Technical data

Package height 21 cm
Packaging length 21 cm
Package width 21 cm
Gross weight 2.5 kg
Application heating systems, i.e. underfloor heating, single and two-pipe systems
Reference no. POTYPHOONRS25/4EAB
Make Idmar
Additional details connection size 1 1/2 "; energy saving class A
Material body - steel
Assembly method Install a filter and a shut-off valve before the pump, and a shut-off valve after it, this will protect the device from contamination and prevent all water from being drained from the system in the event of product replacement
Product dimensions 20,7 x 20,5 x 15 cm
Capacity 2.3 m3/h
Power adjustment 5 - 22 W
Working pressure 10 bar
Maximum water lifting height 4 m
Liquid temperature 2 - 110 degrees C
Supply voltage 230 V
Flow capacity 2.3 m3/h
Connection plan 180 mm

Description

Benefits:

  • economic
  • reliable
  • easy to use
