Digitus Shielded RJ45 Connector for Field Assembly AWG 22-27, 10 GBit ethernet, PoE+

<< Previous Next >>

Availability:

Low Stock

Delivery: 10-05-2024

Price: €5.90 5.90

quantity pcs

add to wish list

Brand: Digitus

Product code/SKU: 168206

Technical data

Dimensions	Plug: 12.5 x 13.0 x 45.0 mm (width x height x depth) Diameter of conductors: 0.85 1.6 mm Outer diameter of the cable: 5.0-9.0 mm
Weight	78 gram
Other features	Wire cross sections AWG 27/7-22/7,AWG 24/1-22/1 Working temperature: -40 ° C to +80 ° C Current carrying capacity at 50 ° C: 1 A PoE + according to IEEE 802.3at: Adapted to Power over Ethernet + Standards: Gigabit Ethernet in accordance with IEEE 802.3, Ethernet 10 Gigabit in accordance with IEEE 802.3an: Suitable for Ethernet 10 Gigabit

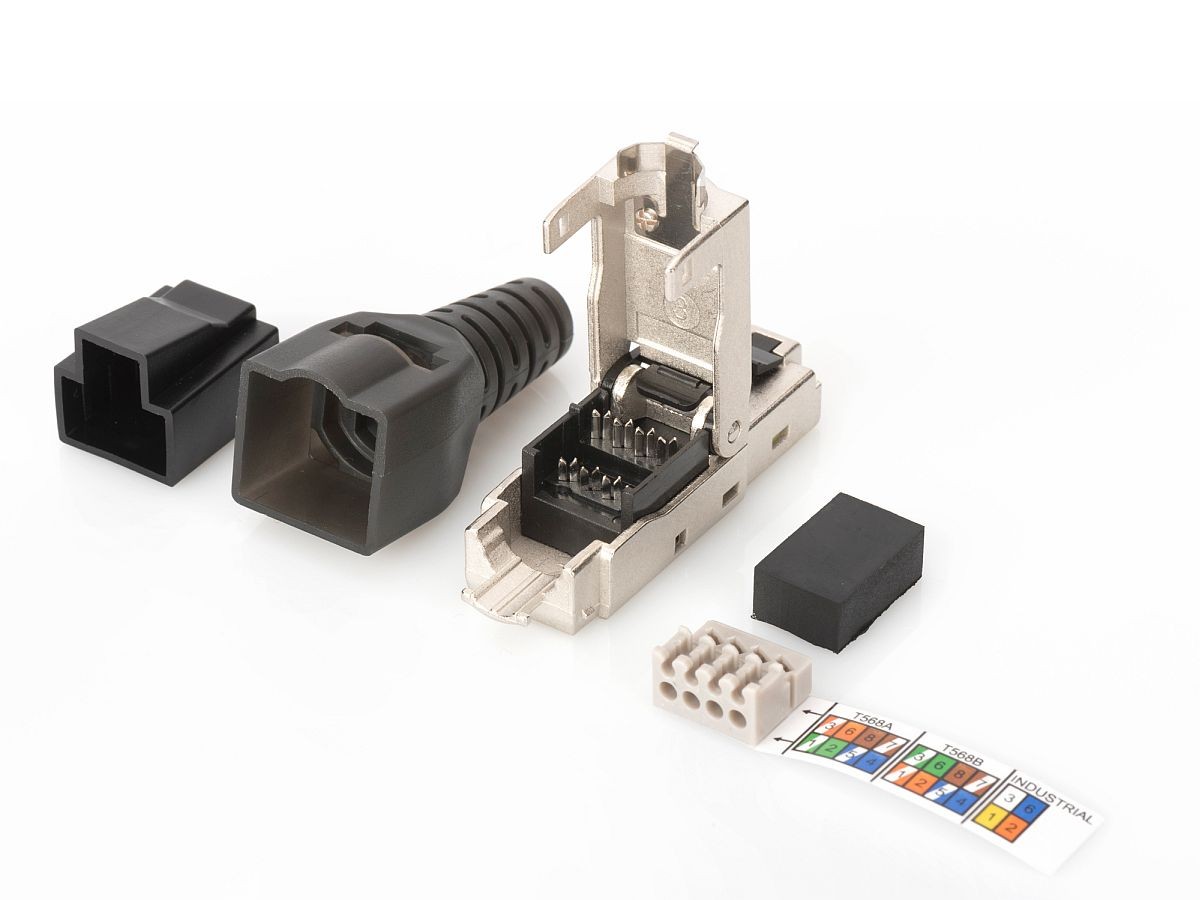

Accessories included	Plug with dust cap Strain relief with strain relief The organizer lived with information about cabling Cable tie Installation instructions
Quantity in unit package	1
Connector	RJ-45

Description

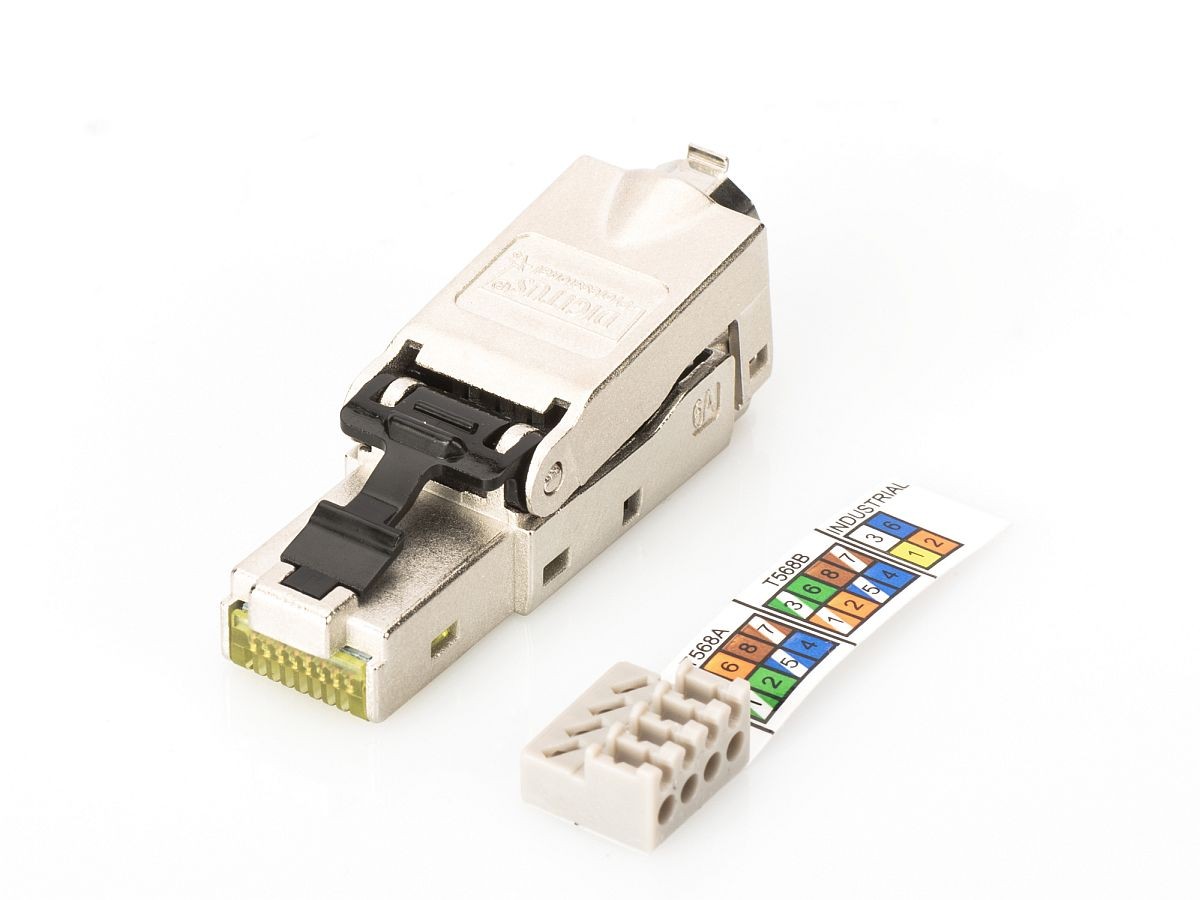

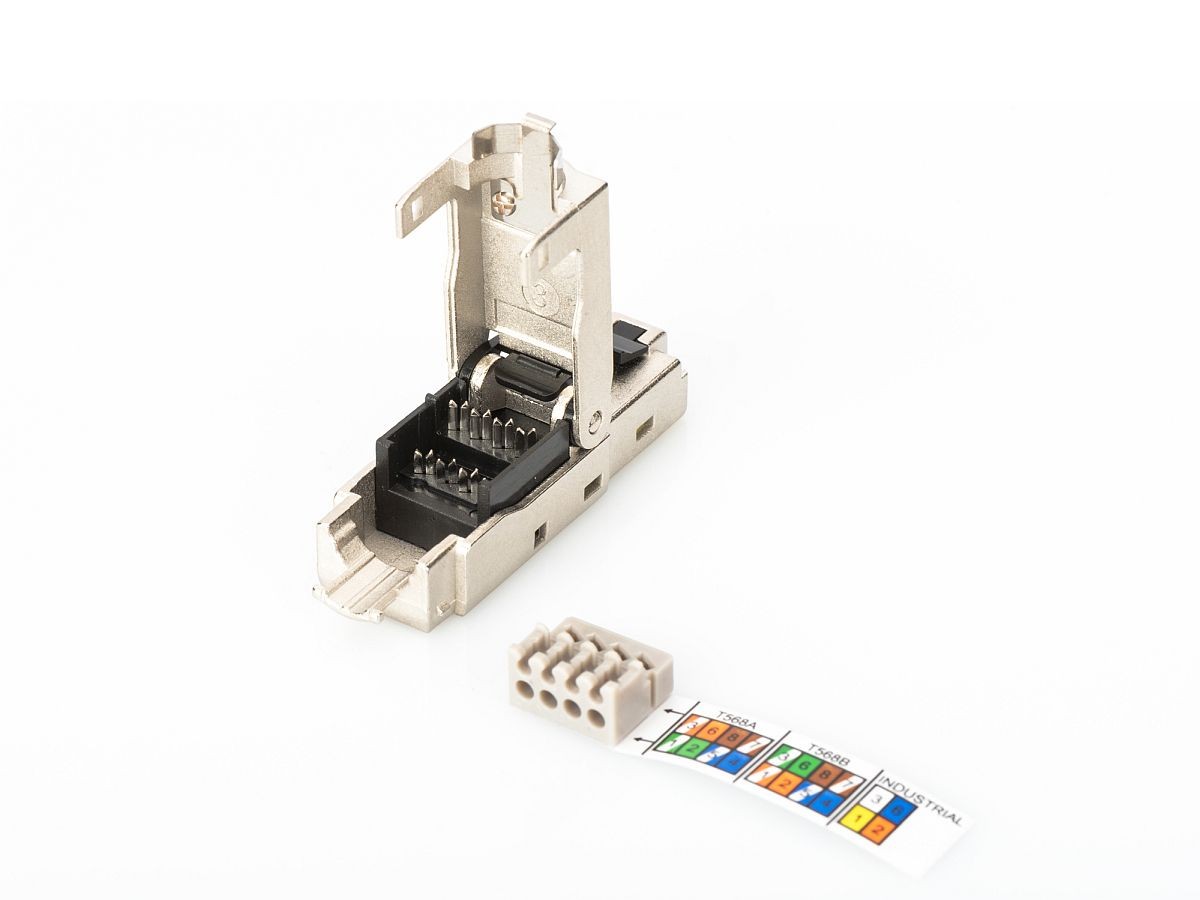

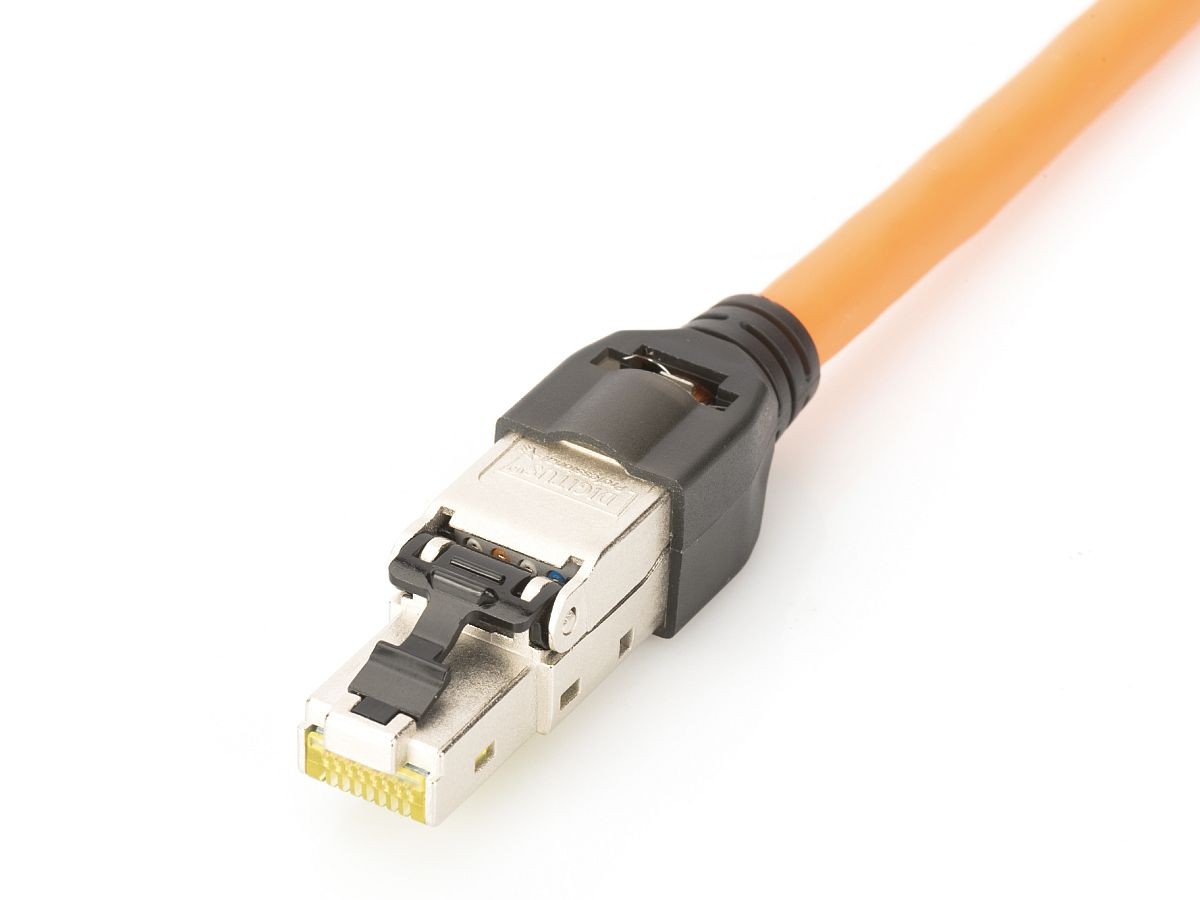

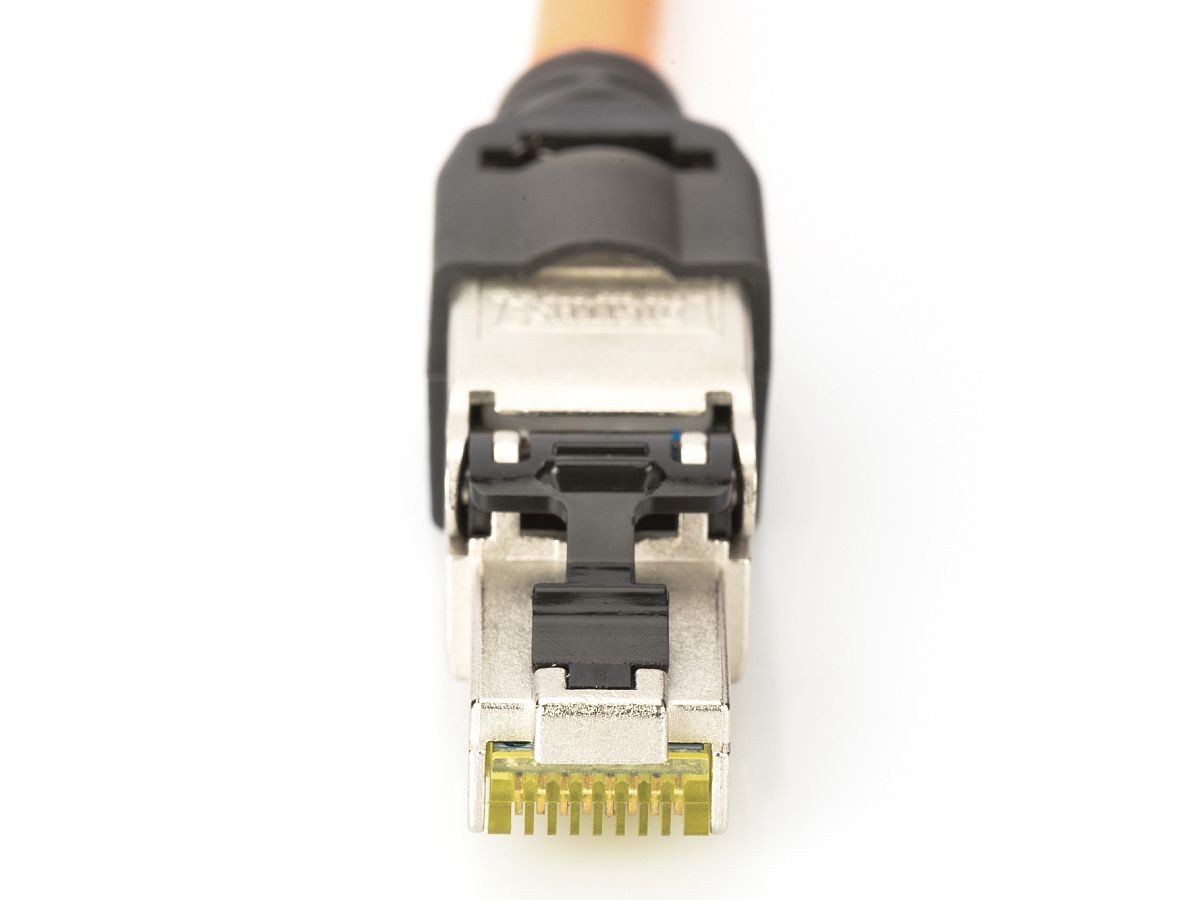

Shielded RJ45 connector for field assembly AWG 22-27, 10 GBit ethernet, PoE+, dust cap, bend relief

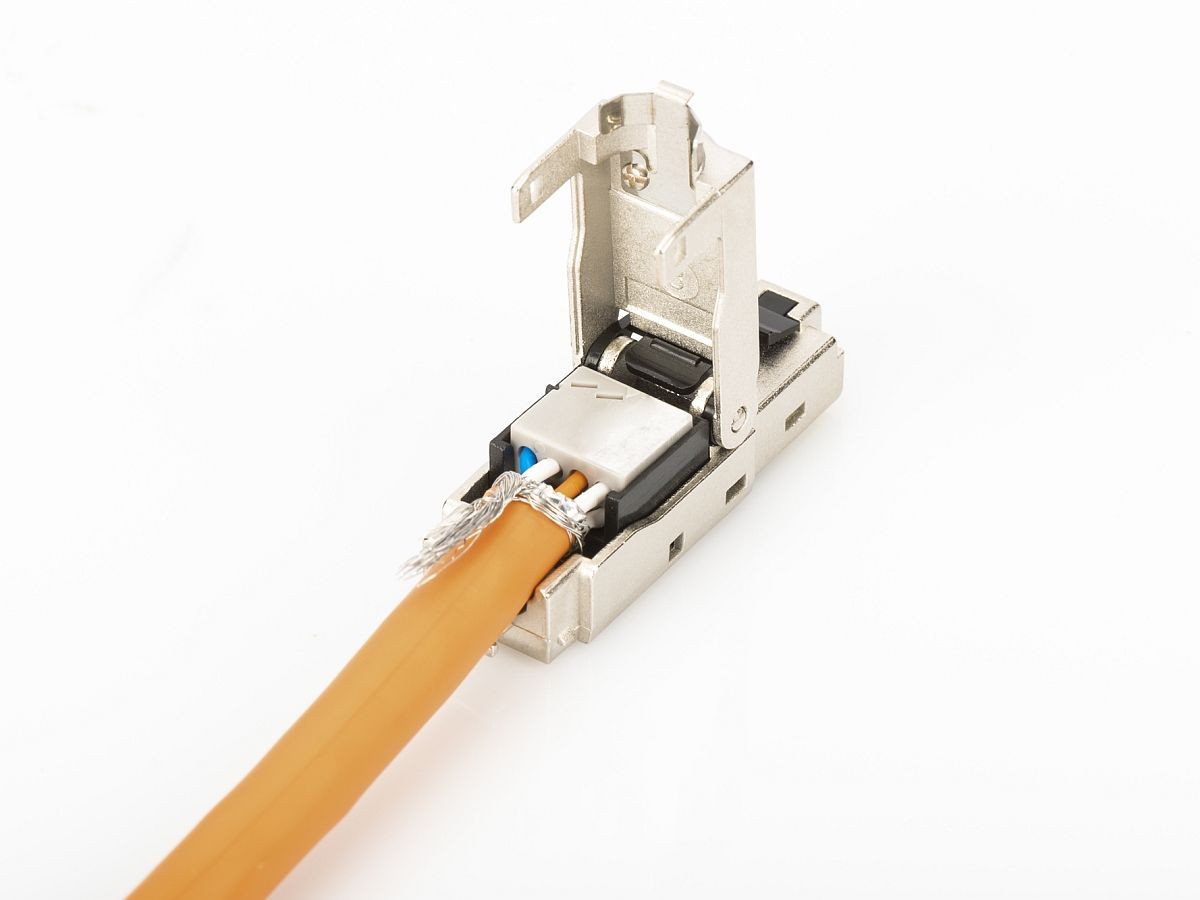

The DIGITUS® CAT 6A RJ45-plug for field assembling is a modern and high quality plug, characterized not only by the simple application, but standing the field assembler every time reliably and quickly at his side. The rapid assembly in only 60 seconds without special tools, as well as the high flexibility, makes it to the perfect choice at any locations. It is suitable for all networks of voice up to 10 Gigabit Ethernet. Satisfied customers, because of fast and cost-saving installation, repairs and maintenance, are the logical consequence of this innovative RJ45 plug. Why complicate things when it can be so easy? See for yourself!

Technical Details Preassembled protection cap Robust zinc diecast housing 360° cable screen connection for enhanced EMI protection Can be assembled in 60 seconds without any special tools Optimised for the field, including demanding applications Secure transmission even with outside interference Ideal for network repairs, special length and extensions Cross sections AWG 27/7-22/7, AWG 24/1-22/1 Insulation: 0.85 - 1.6 mm Cable diameter: 5.0-9.0 mm Dimensions (W x H x D): 12.5 x 13.0 x 45.0 mm Weight: 78 g --Climatic Characteristics: Operating temperature: -40 °C to +80 °C --Electrical Characteristics: Current carrying capacity at 50°C: 1 A PoE+ acc to IEEE 802.3at: Adequate for Power over Ethernet+ --Standards: Gigabit Ethernet acc. to IEEE 802.3 10 Gigabit Ethernet acc. to IEEE 802.3an: Adequate for 10 Gigabit Ethernet Colour: Silver Model: Plug Connection type: Other Screened: yes Category: 6A (IEC) Suitable for round cable: yes Suitable for flat cable: no Suitable for litz wire conductor: yes Suitable for solid core: yes Type of connector: RJ45 8(8) AWG-range: 24 … 22 Special tool necessary: no
