Digitus Ethernet LAN Cable U/UTP Cat.6 DK-1614-VH-1 100m, violet
Availability:
Low Stock
Low Stock
Delivery:
06-11-2026
Price:
add to wish list
Brand:
Digitus
Product code/SKU:
624026
Technical data
| Type | Cable |
| Colour | Violet |
| Other features | Physical Properties Conductor: AWG 23/1 bare copper wire, nominal diameter 0.57 mm Insulation: HD-PE Total number of insulated conductors: 8, twisted into 4 pairs Color code: blue-white, orange-white, green-white, brown-white Outer jacket: Halogen-free (FRNC-B / LSZH-1) Outer jacket thickness: nominal 0.50 mm Mechanical Properties: Tensile load: max. 150 N Minimum dynamic bending radius: 8× OD mm Minimum static bending radius: 4× OD mm Transport and storage temperature range: -20°C to +60°C Operating temperature range: -20°C to +75°C Installation temperature range: 0°C to +50°C Nominal outer diameter: 6.2 mm Flame resistance: IEC 60332-1 Halogen-free & smoke density standards: IEC 60754-2 & IEC 61034 Fire load: 320 MJ/km Electrical Properties: Characteristic impedance: 100 5 ohms at 1 MHz to 600 MHz Capacitance: nominal 40 pF/m @ 800 Hz Capacitance unbalance (pair-to-ground): max. 1.5 pF/m @ 1 kHz Insulation resistance: min. 5 G × km Loop resistance: max. 147 ohms/km (max. 2% resistance unbalance) Operating voltage: max. 72 V DC Insertion loss: 40 dB Propagation delay: max. 535 ns/100 m Delay skew: max. 20 ns/100 m NVP (Nominal Velocity of Propagation): 69% |
| Category | CAT 6 |
| Cable length | 100 Meter |
| Usage | LAN |
| Connectors #1 | None |
| Connectors #2 | None |
| Twisted-pair cable | U/UTP |
| Designation | CE+WEEE |
| Conductor material | Copper - Cu |
Description

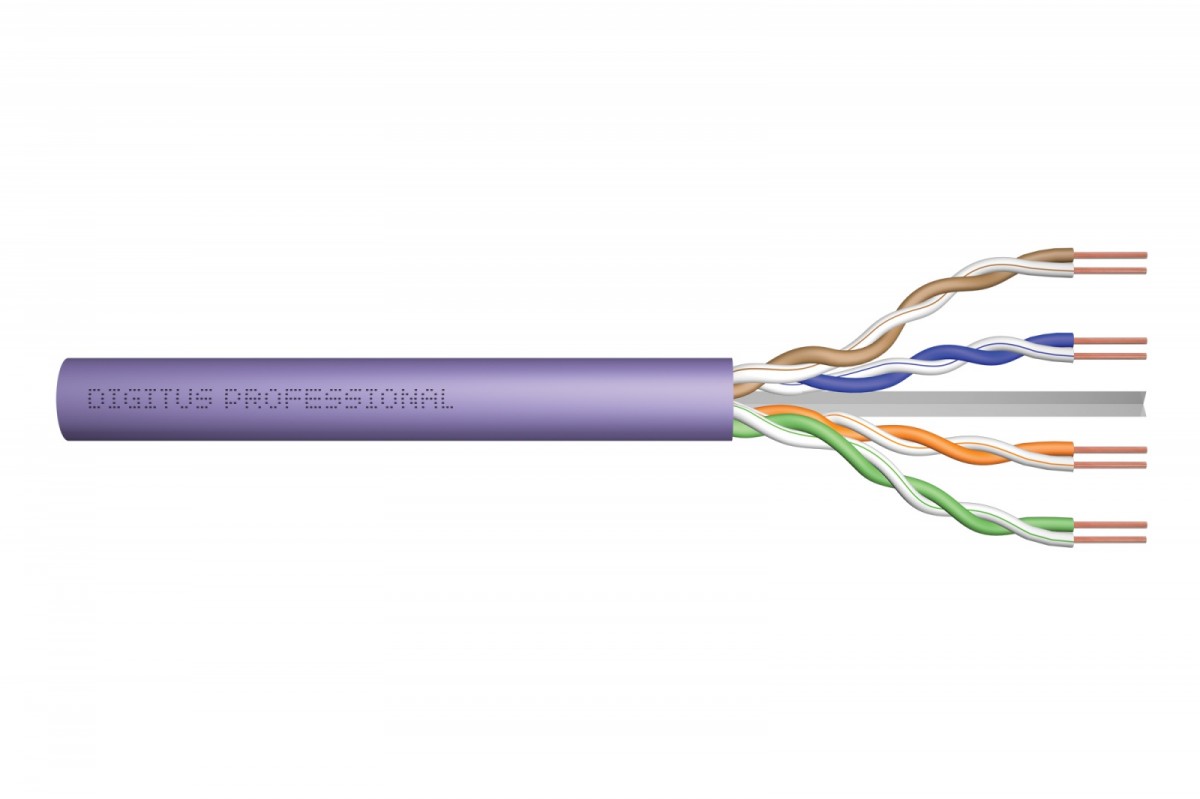

- Conductor: Bare annealed copper, solid AWG 23/1; diameter 0.55 mm nominal
- Insulation: HD-PE (High Density Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Individual pair shielding: None
- Overall shielding: None
- Outer sheath: ECA to B2CA acc. to EN 50575
- Outer sheath diameter (nominal): 0.5 mm (ECA); 0.6 mm (DCA); 1.0 mm (CCA); 1.0 mm (B2CA)
