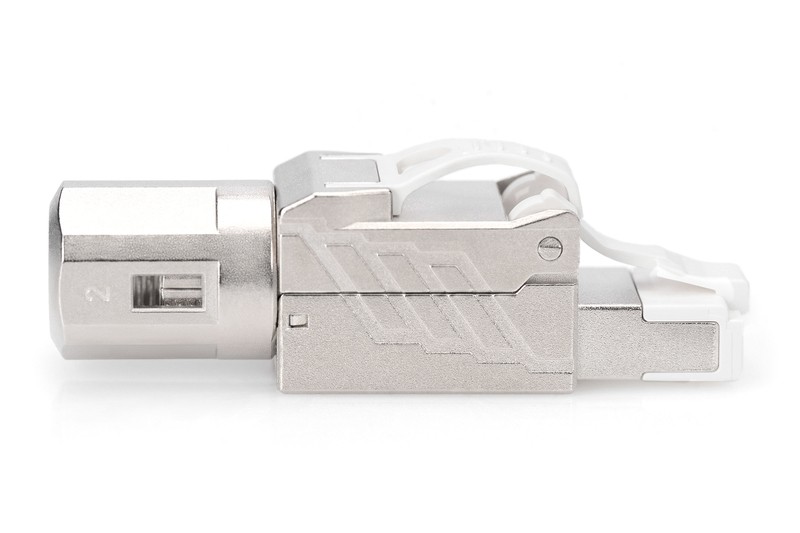

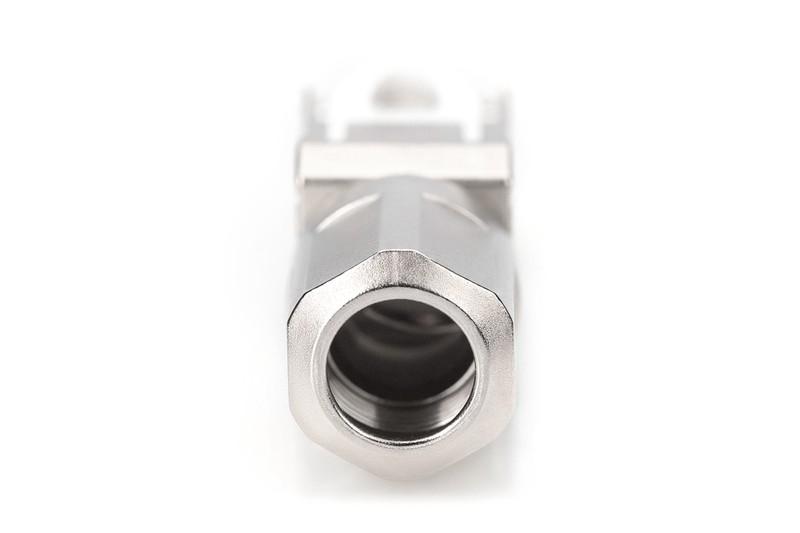

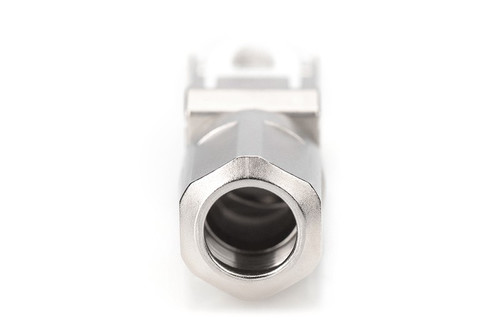

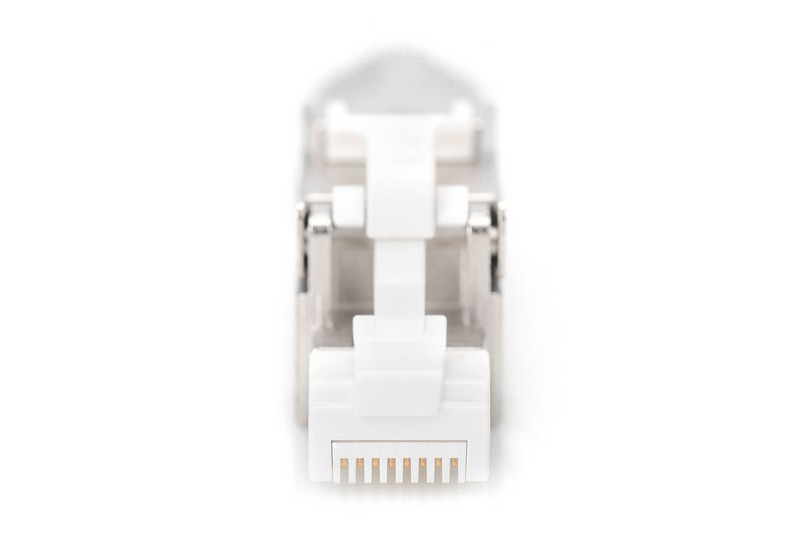

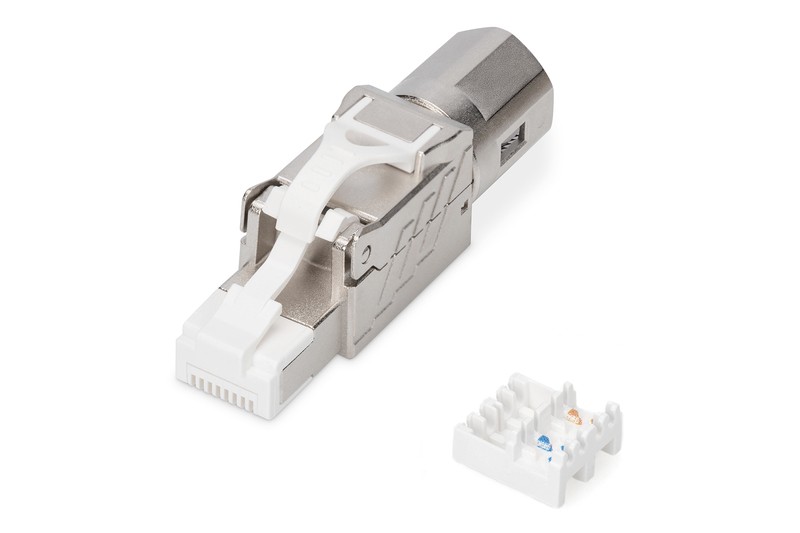

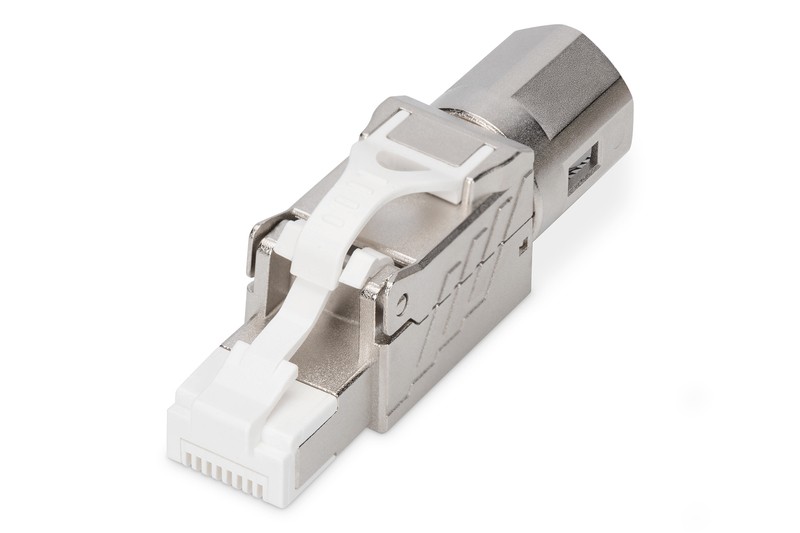

Digitus Connector RJ45 Cat.8.1 DN-93835

<< Previous Next >>

Availability:

Out of stock

Price: €16.74 16.74

quantity pcs

add to wish list

Brand: Digitus

Product code/SKU: 760114

Technical data

Dimensions	(L × W × D) 19.5 × 15.0 × 58.3 mm
Weight	38 gram
Other features	Transmission characteristics: Category 8.I 25/40 GBase-T, 2000 MHz ISO/IEC 11801 3rd Edition, EN 50173-1 Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3bt) General specifications: Suitable for patch cable installation RJ45 connector, 8P8C Tool-free cable installation via LSA isolation terminals, color-coded according to EIA/TIA 568 A&B Strain relief and cable clamping by means of a nut Tool-free mounting connection 360° shielded contact Technical specifications: Housing material: nickel-plated zinc die-cast Contact material: Phosphor bronze Contact shielding: nickel, gold-plated 0.5 Physical specifications: Insertion force: max. 30N (according to IEC 60603-7-81) Holding force: 7.7 kg between socket and plug Operating temperature range: -20°C to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2) Insertion cycles: >750 (ISO/IEC 11801, IEC 60603-7-81) Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire Electrical strength: 1000 VDC (contact/contact), 1500 VDC (contact/mass) Compatible with Keystone Module DN-93815 and Cable DK-184X-VH
Quantity in unit package	1
Connector	RJ-45

Description

Standard category 8.I
PoE ++ support
Bandwidth up to 40Gb/s
360-degree STP shielding

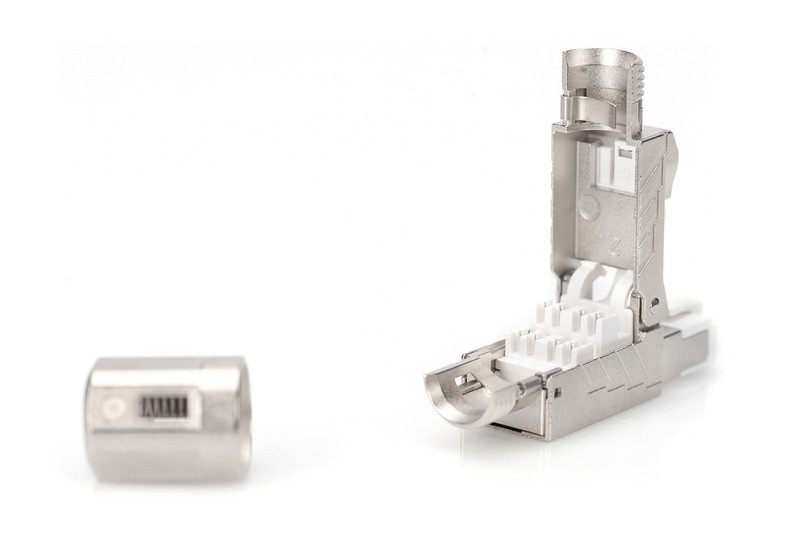

Tool-free assembly
For cables from 26 to 22 AWG
