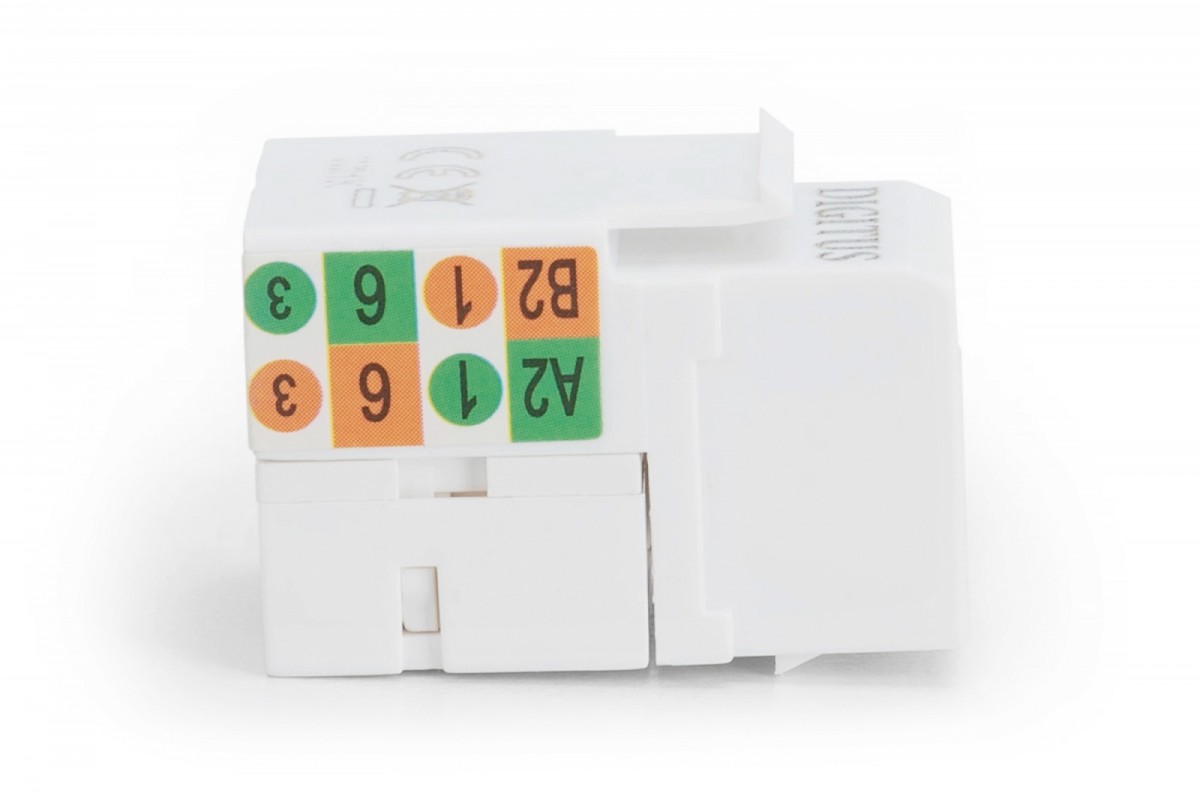

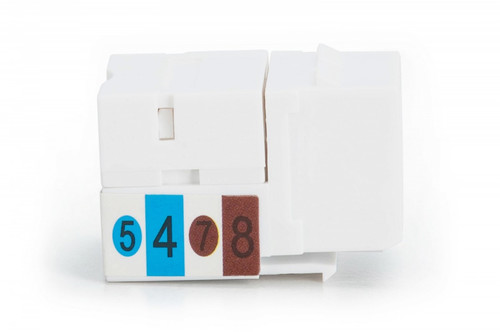

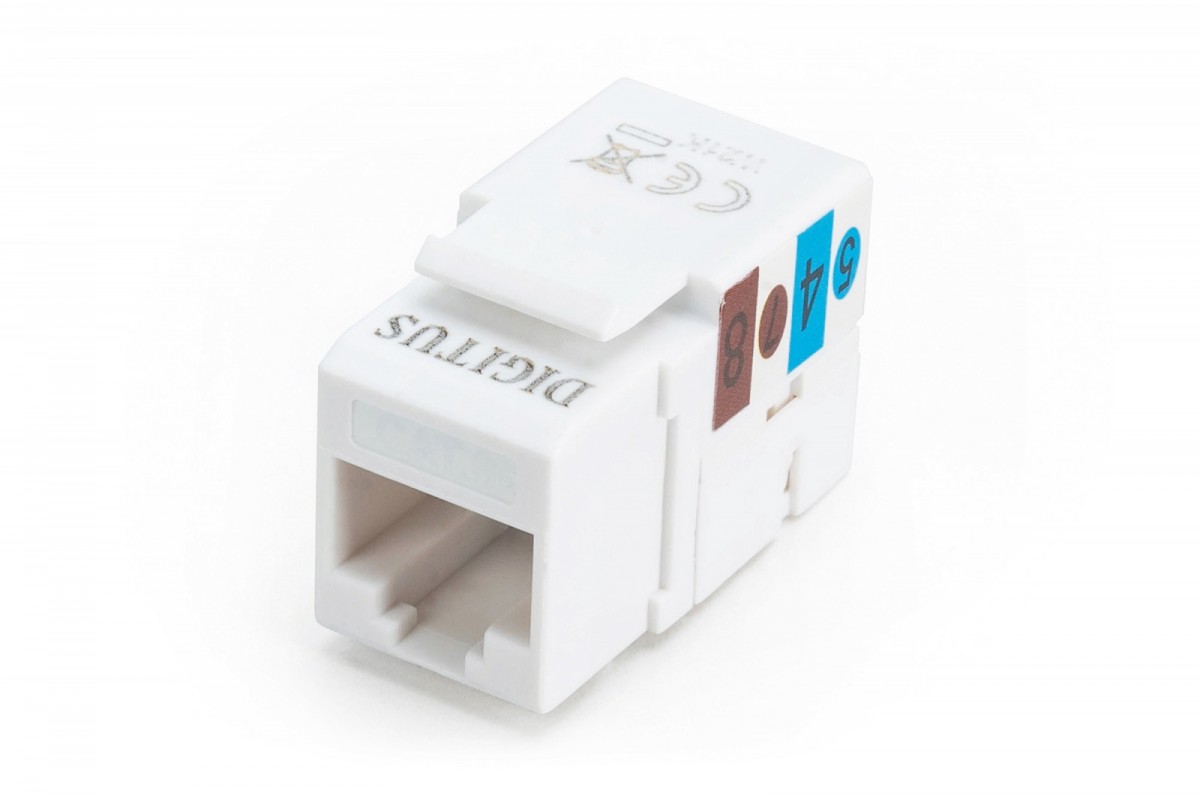

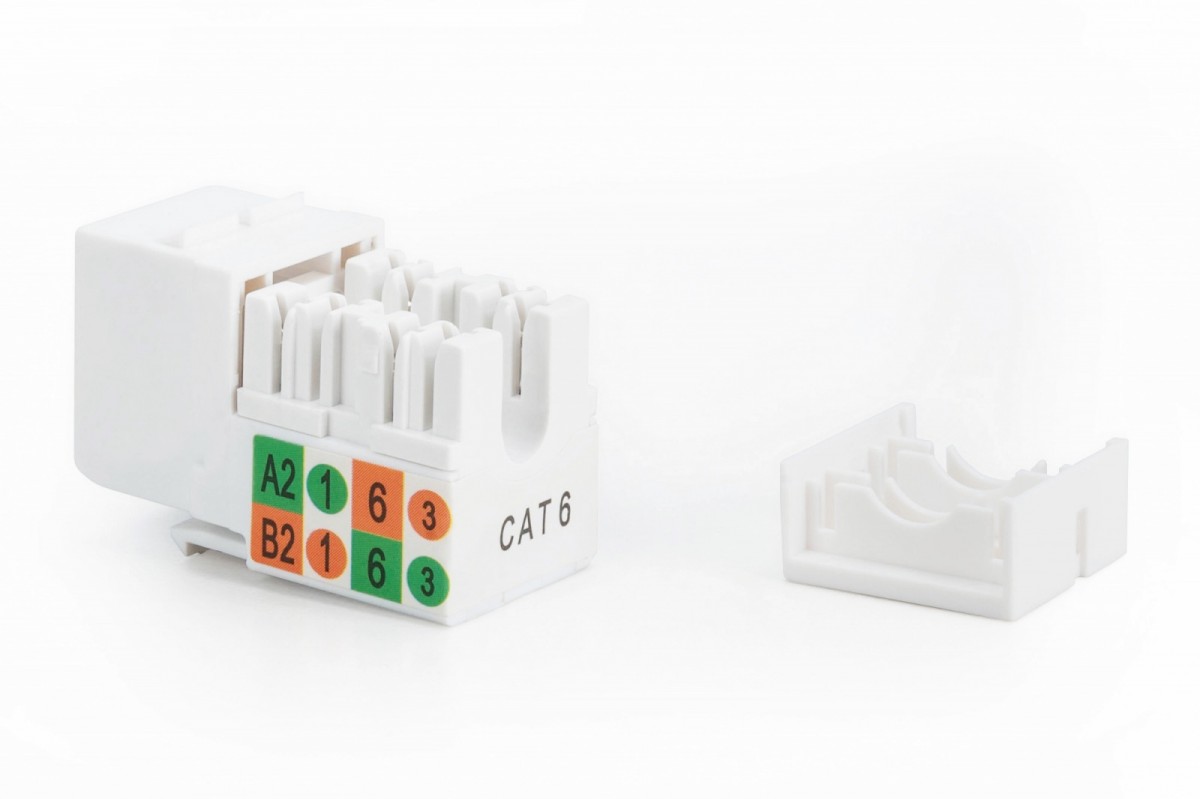

CAT 5e, Class D Keystone Module unshielded

CAT 6, EIA/TIA 568 und ISO/IEC 11801 / EN 50173
Tested and 3P Channel Link certified for LINK Performance CAT 6 CLASS E for up to 250MHz, 1Gbit Ethernet
Complete shielding of RJ45 sockets and LSA strips from enclosed metal die cast housing
Integrated installation cable strain relief
40° socket angle
Trunking system, surface / flush mount ready
Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
Cover frame in 80/80mm incl. Central plate 50x50mm according to DIN 49075
Horizontal cable entry
Color white RAL 9010

CAT 5e Surface modular outlet RAL 9003

•      2x RJ45, 8P8C
•      shielded
•      CAT5e
•      LSA connector (EIA/TIA 568B)
•      RoHS

Shielded plug RJ45 Cat6, 8P8C universal- suitable for mounting on the solid / stranded

- Shielded RJ45 connector, cat.6
- Universal 8P8C
- Pack: 100 pcs

Maclean MCE151 remote control jack in 1pcs - programmable + remote control battery
The devices needed in today's times where the popular topic is energy saving. The purpose of the sockets with remote control is to support home appliances such as lamps, fans, other electrical equipment.
In addition, the sockets allow you to switch off appliances that use energy (RTV, household appliances) even during sleep.

PROGRAMMING:
- Open the remote control cover and place two AAA 1.5V batteries in the middle. Then press On / Off to see if it works. If the LED on the remote control turns on, the batteries are working properly.
Plug in the socket, the LED indicator will blink. Enter the channel selection mode on the remote control. Note: The socket will exit the channel selection mode after 29 seconds of inactivity.
- On the remote control, press A-On, B-ON, C-ON or D-ON to match the socket. When properly connected, the LED stops blinking. Done - you can now turn the socket on or off by pressing ON / OFF.
- Deleting a single channel: Disconnect and re-connect the power outlet (the LED will flash slowly in the channel selection mode). Then press and hold the OFF button until the LED flashes quickly (about 3-4 seconds), which means that the selected channel has been deleted. After clearing the channel, the receiver returns to the selection mode. Total time for channel selection is 29 seconds.
Remove all the selected channels: Disconnect the power socket and reconnect (the LED will flash slowly in the channel selection mode) then press and hold the OFF 'ALL ON / OFF' button until the LED flashes rapidly (about 3-4 seconds) This will mean that all selected ON / OFF channels have been removed. After all, the led will stop blinking.

Main features:
- Remote control socket 1 piece programmable + remote control + remote control battery
- Power supply: 230V, 50Hz
- Maximum load: 16 (2) A, 3600W
- Frequency of operation: 433.92MHz
- Range: about 30m in open space
- Remote control batteries: 2 AAA 1.5V (included)
