VGA multiplier

AV HDMI 2.0 4K Ultra HD 1/2 Splitter

- Simultaneous display of one HDMI source on two HDMI displays
- Supports 4Kx2K resolution, 3D video and Color depth
- Supports DSD (Direct Stream Digital), HD (HDR)
- Full HDCP compliance
- Plug-and-Play connection; No special configuration required
- Works with Playstation and Xbox, Blu-ray players, STB decoders, satellite receivers, and more

- HDMI 2.0 interface
- Power supply 5V 1A
- User's Guide

96 x 59 x 17 mm

- Input and output TMDS signal: 0.5 - 1.5 volts p-p
- Input and output DDC: 5 volts p-p (TTL)
- transmission range: 30m from signal source to splitter; 25m from the splitter to the display
- Compatible with DVI 1.0, HDMI 1.4, HDMI 2.0
- Compatible with HDCP 1.4 and HDCP 2.0
- Bandwidth: 25 - 600 MHz
- Supports audio DSD, HD (HBR)

Supported resolutions:
- 480i
- 480p
- 756i
- 756p
- 720p
- 1080i
- 1080p
- 4Kx2K @ 30 / 60HZ

USB 3.0 Metal 4-port passive USB HUB, 4x USB 3.0 port
i-tec USB 3.0 HUB is the perfect companion for everyone who does not have enough USB ports in their notebook, ultrabook or PC, and for those who have to constantly disconnect and connect their favorite devices, such as a USB flash drive, tablet, digital camera, MP3 player, printer, etc.

This HUB offers 4 USB 3.0 ports with Plug & Play function and standard USB charging - HUB will automatically detect connected USB charging devices.
The USB 3.0 interface is mainly important when transferring data from USB 3.0 memory cards and flash drives that use the highest transfer speed. The LED indicates the read and write status of the data. HUB is powered from the USB bus and does not require installation of drivers. Just connect it with a USB-C cable and it's ready to use right away. It has built-in overcurrent protection to protect your computer in case of a short circuit in connected peripheral devices. The interface is compatible with USB 2.0, works without a power supply, which is not required for most equipment, and thanks to its small size and light weight, you can take it with you wherever you like.

- i-tec USB 3.0 Metal 4-port HUB passive with built-in USB cable (20cm)
- User's guide

96 x 30 x 21mm

- USB charging detection mechanism for mobile devices
- Plug & Play function
- Led
- Overcurrent and overload protection
- 1x built-in USB 3.0 cable for connecting the HUB to a notebook, tablet or computer

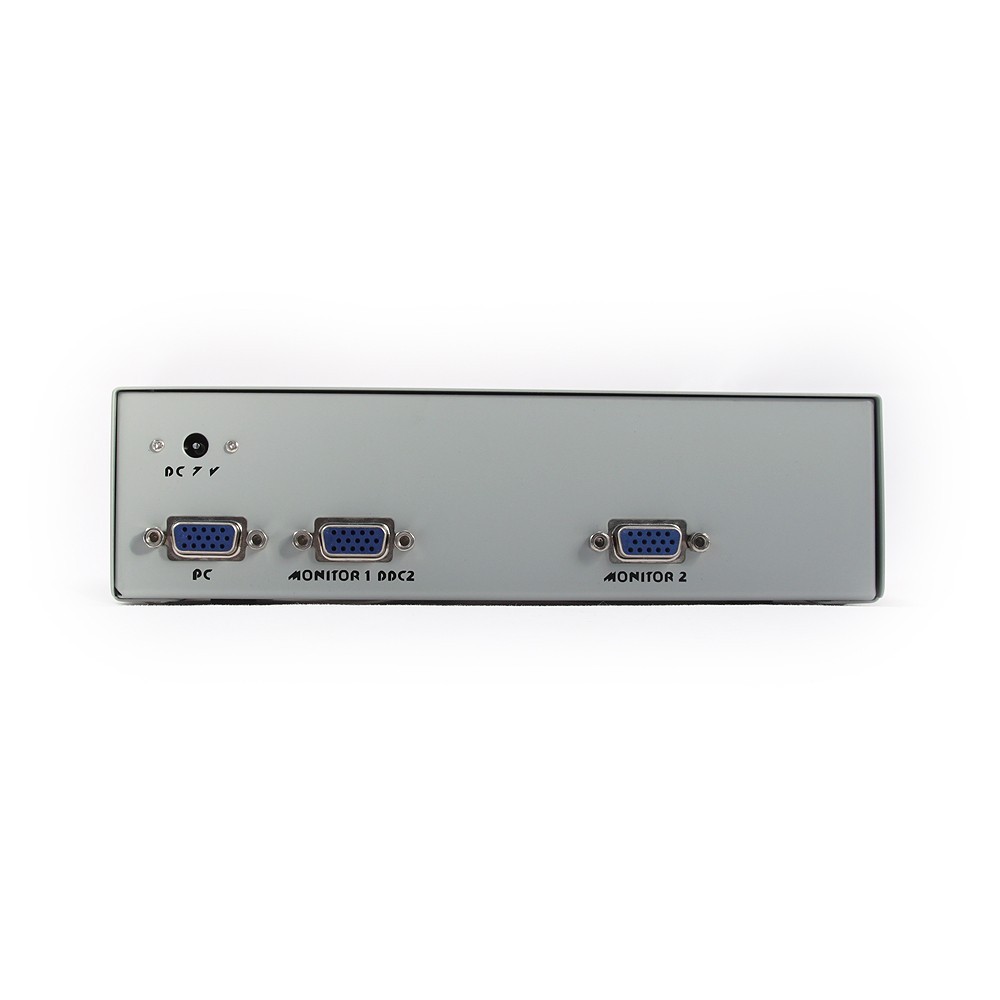

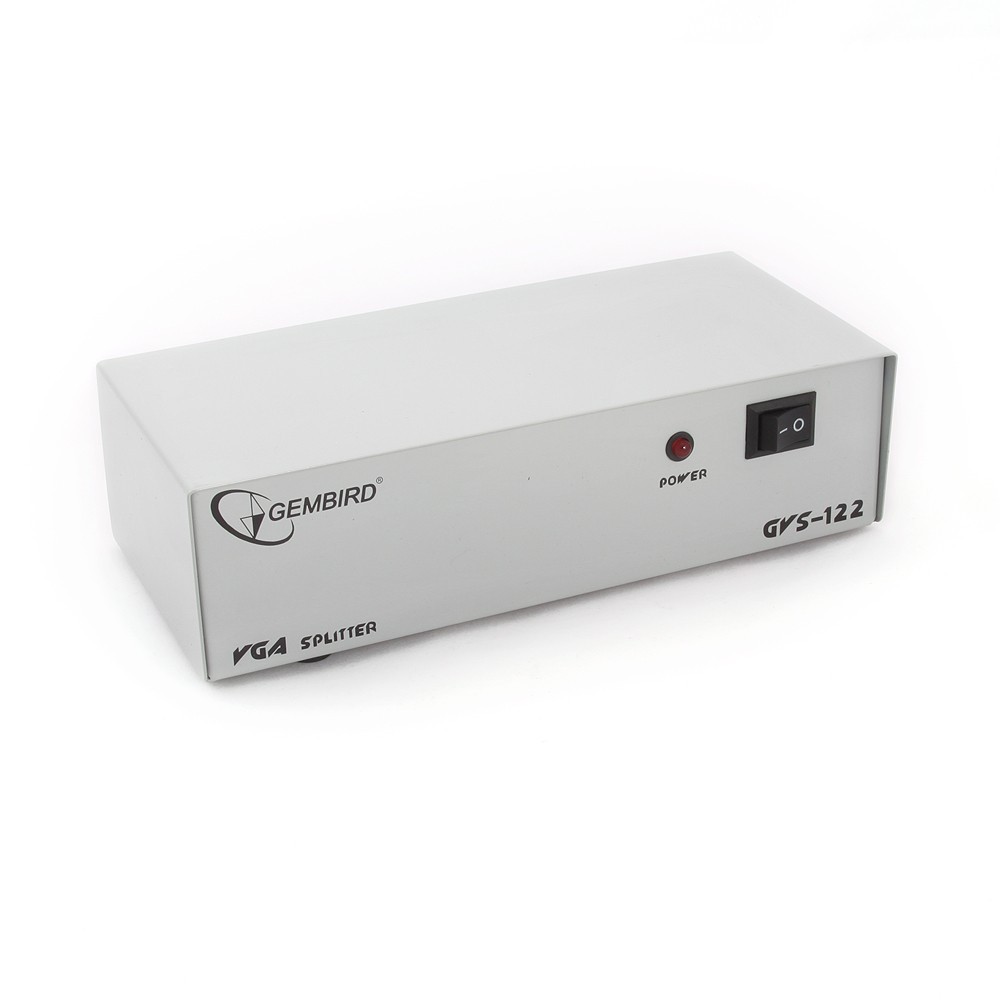

VGA multiplier

• Cost effective SOHO solution
• Enables the use of 2 monitors with one PC
• No software required
• Can also be used to attach a monitor far away from PC (up to 75 meters)

Features:
- Video Splitter is a VGA/SVGA splitting device which sends video signal of one PC to 2 monitors
- Its built-in 200 MHz bandwidth amplifier not only increases the transmission distance to about 75 meters but also improves quality of the video signal

Specifications:

• Power adapter: 9 VDC 500 mA
• Input Connectors: 1 HD DB15 Female
• Output Connectors: 2 HD DB15 Female
• Resolution: up to 2048x1536
• Maximum transmission distance: up to 250 feet (75 meters)
• Amplified signals:
  a) Analogue: Red, Green, Blue video signals
  b) TTL: Vertical and Horizontal synchronization signals
• Case: Metal

- Power adapter
- Splitter

- Number of connected monitors: 2
- Sockets for connecting monitors: DB-15F x 2
- Sockets for connecting PC DB-15F x 1
- Housing material: metal
- Connecting a Plug-and-Play
- No software required
Requirements:
- PC with a graphics card VGA, SVGA, Multisync
- Monitor with HD plug-15M
- Cable connectors: VGA cable male-male

The METAL series is the latest line of i-tec products with a stylish appearance and exclusive packaging.
I-tec USB 3.0 Metal Charging HUB is an ideal addition for anyone who has an insufficient number of USB ports on their notebooks, ultrabooks or PCs and is constantly forced to connect and disconnect their favorite USB devices such as flash drives, Tablets, digital cameras, MP3 players, printers, etc.

HUB has 4 USB 3.0 ports with Plug & Play and USB charging - HUB automatically detects USB devices that need charging.
USB 3.0 ports are especially important for optimal data transfer from USB 3.0 and flash memory, most of which allow for high transfer rates.
The advantage is an external power supply that can be used to back up data on external hard drives or connect high power devices that are powered directly from the USB port.
HUB does not require driver installation. Simply connect the USB cable to your device and computer and start working immediately. The HUB has built-in overvoltage protection in the event of a short circuit on peripheral devices. This device is compatible with USB 2.0 / 1.1. Compact dimensions and light weight make the HUB a perfect accessory for people who use their laptop on the go.

- AC input 100-240V, 50-60 Hz, 0.8A
- DC output 5V, 2A

- Windows XP
- Windows Vista
- Windows 7 32 / 64bit
- Windows 8 32 / 64bit
- Windows 8.1 32 / 64bit
- Windows 10 32 / 64bit
- Mac OS X 10.x or higher

- I-tec USB 3.0 Metal Charging HUB 4 Port with built-in cable (28cm)
- Power adapter (120cm cable)
- Instruction

112 x 37 x 18mm.

- Baud rate up to 5 Gbps
- USB charging device detection system
- Plug & Play
- Overcurrent protection and overvoltage protection
- Led

- Supports Ultra HD, resolution of 4096 x 2160dpi
- Supports 4K Full HD, Full 3D, 4K2K video
- Supports HDTV, resolution of 4096 x 2160dpi
- EDID support: automatic detection of input sources
- Supports Deep Colour, 30/36 bit
- Status LEDs (connection indicator)
- Compliant with HDMI / High Speed HDMI
- Supports compressed audio formats, such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
- Supports audio codecs: DSD Audio, HD (HBR) Audio
- Supports HDCP repeater monitor (repeater)
- Built-in HDMI signal amplifier allows you to use additional 5 m cables (Standard HDMI) or up to 15 m (High Speed HDMI)
- Frequency range / data rate: 25 MHz - 340 MHz, up to 3.0 Gbit/s per channel
- Compliance with HDCP Rev. 1.3
- Power supply input voltage: 5V / 1A

60 x 70 x 20mm
